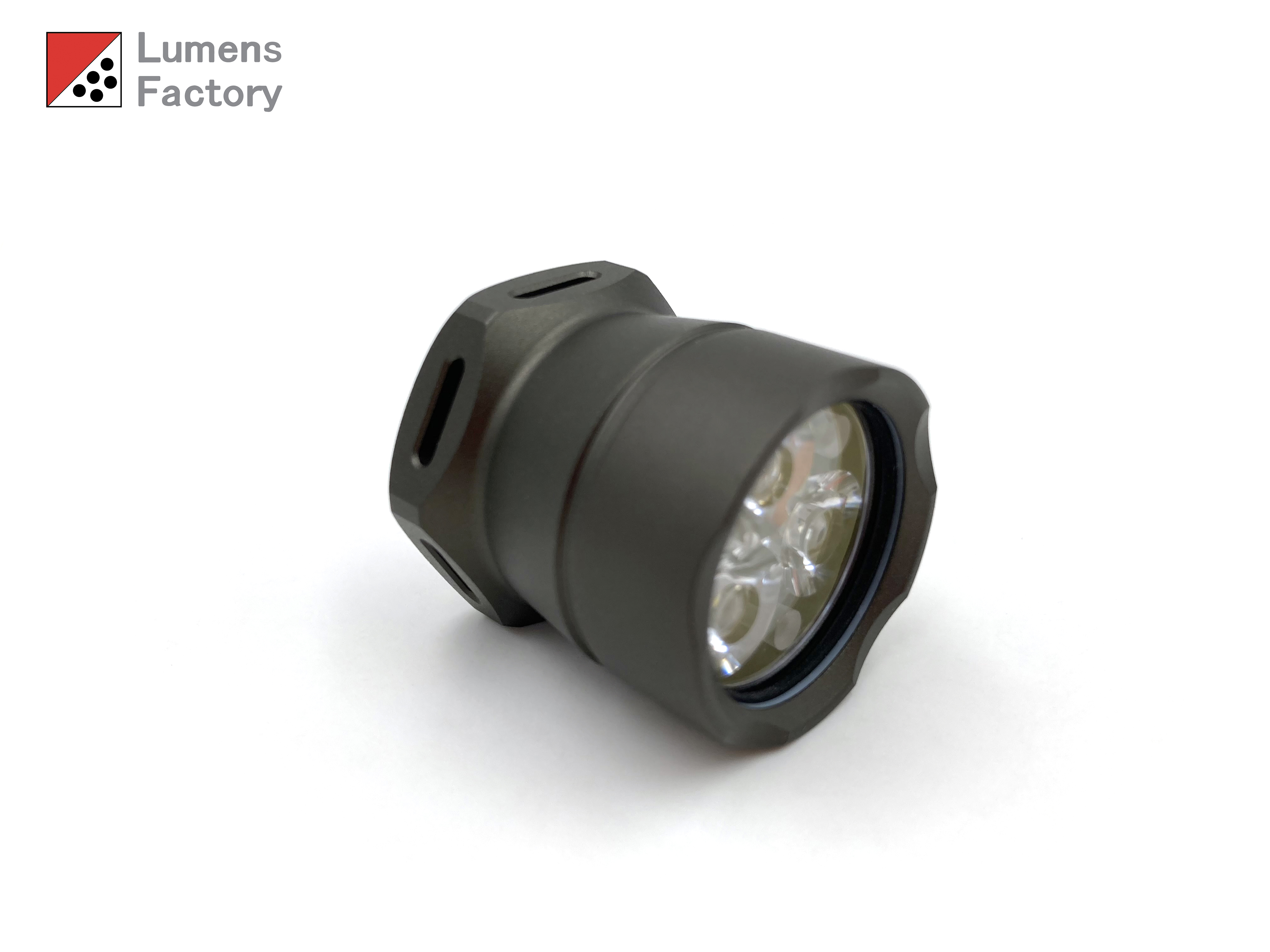

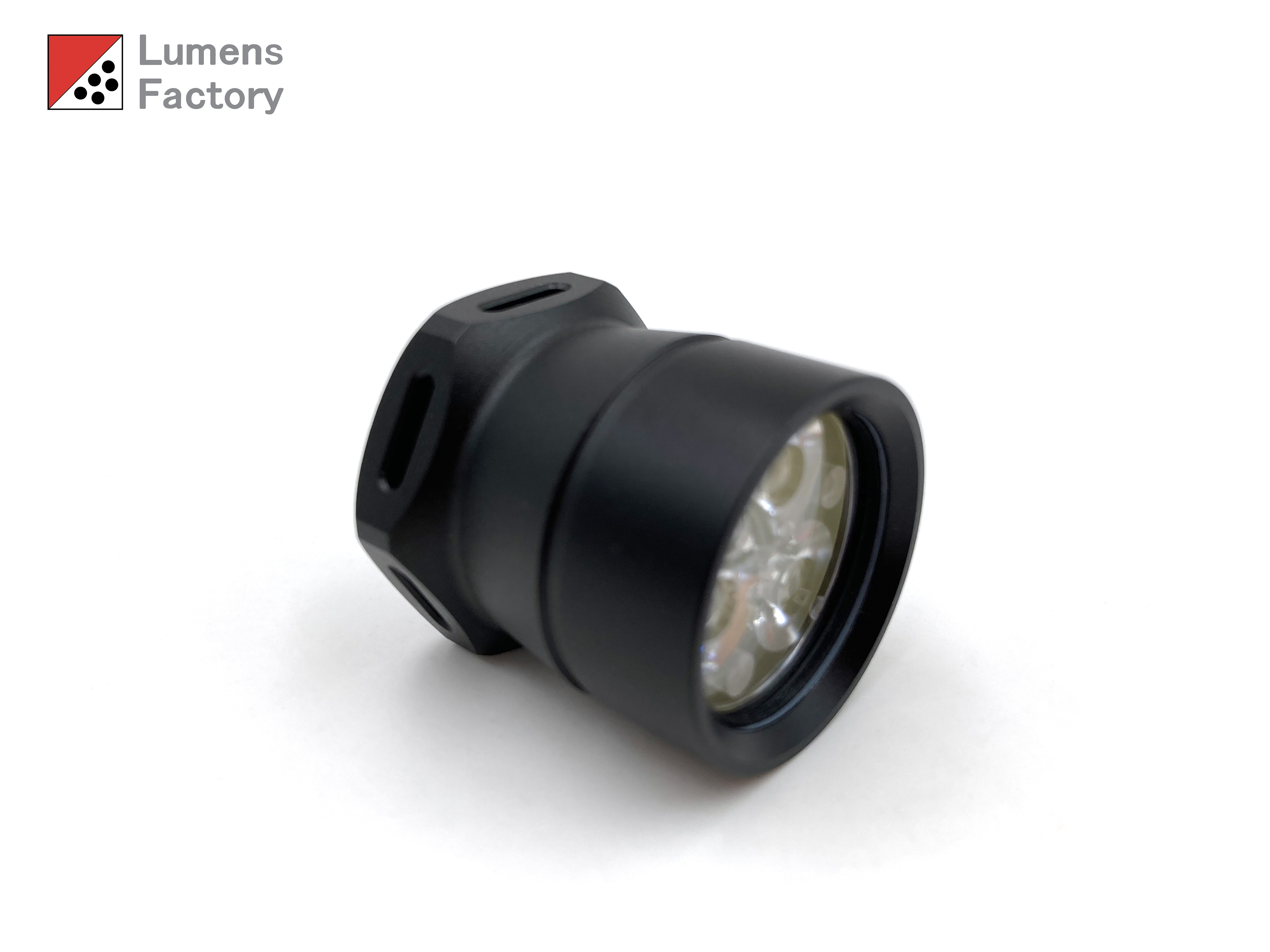

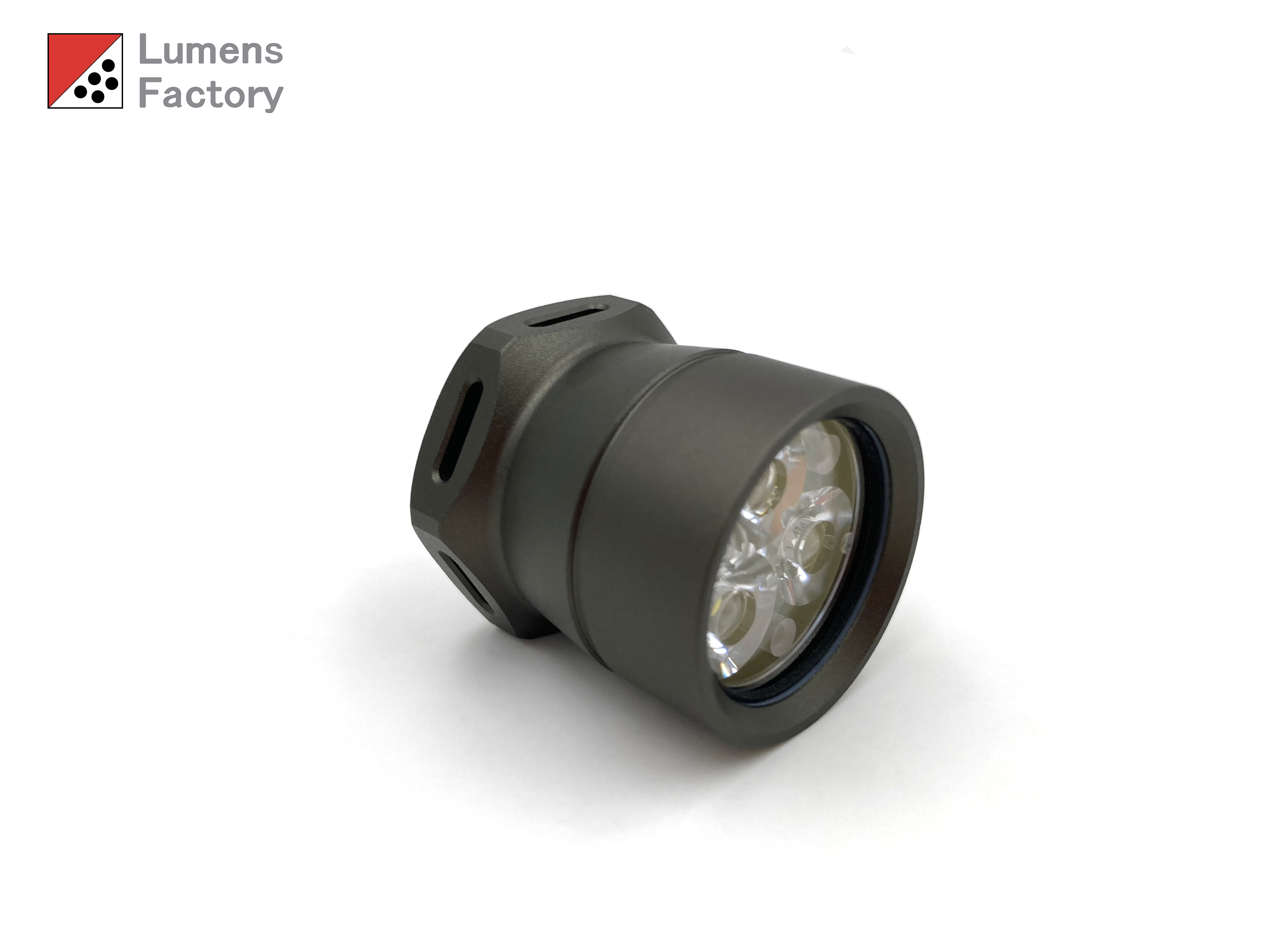

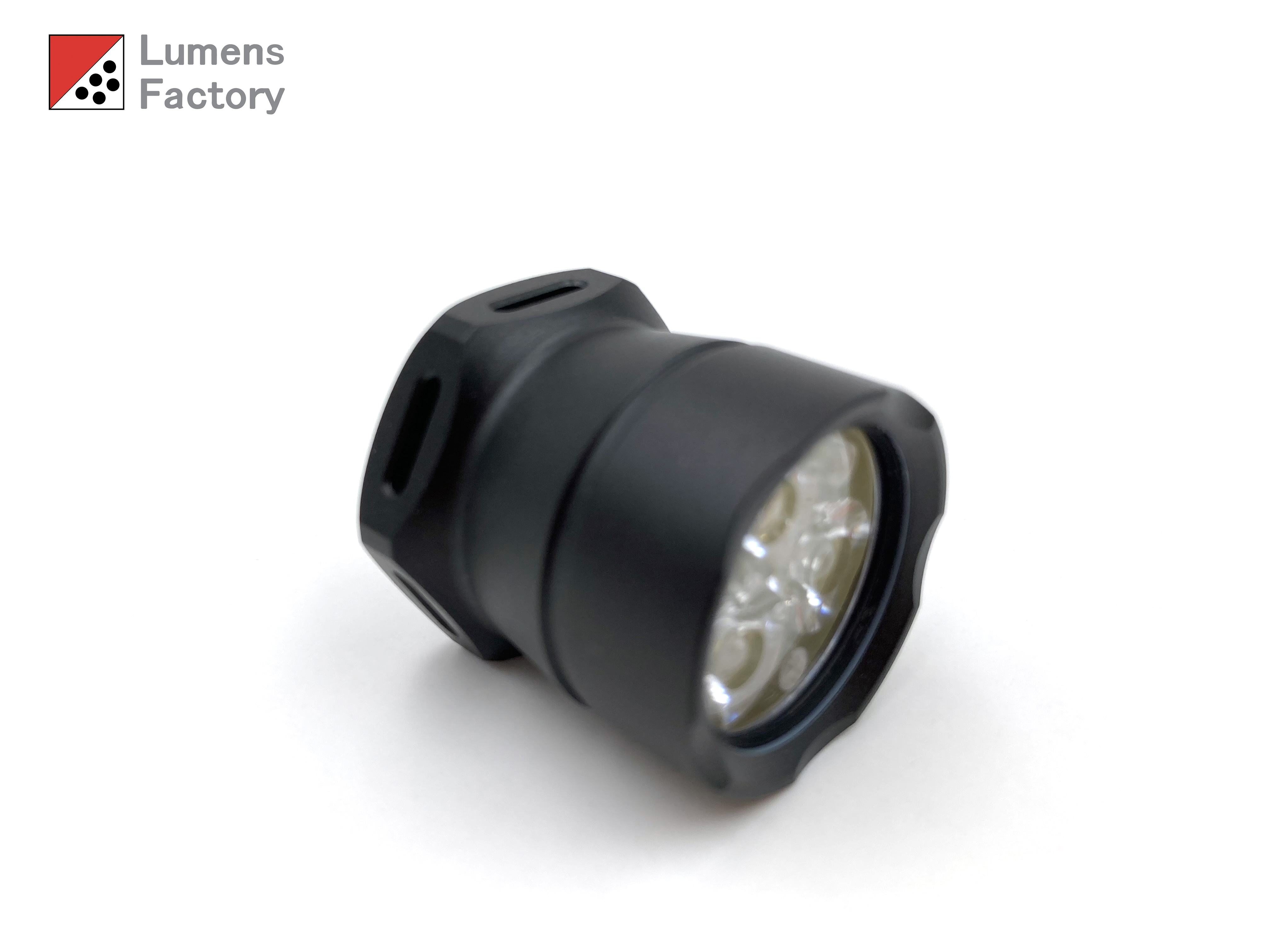

E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or XPL LED (Max Output 900-1075 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Neutral White 80-CRI or Warm White 90-CRI LEDs Available
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black or Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

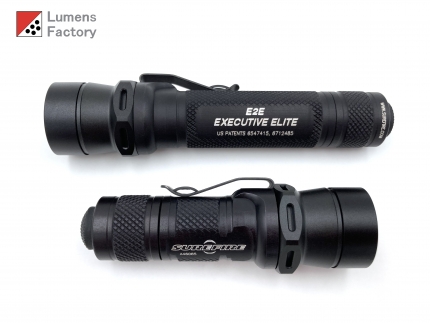

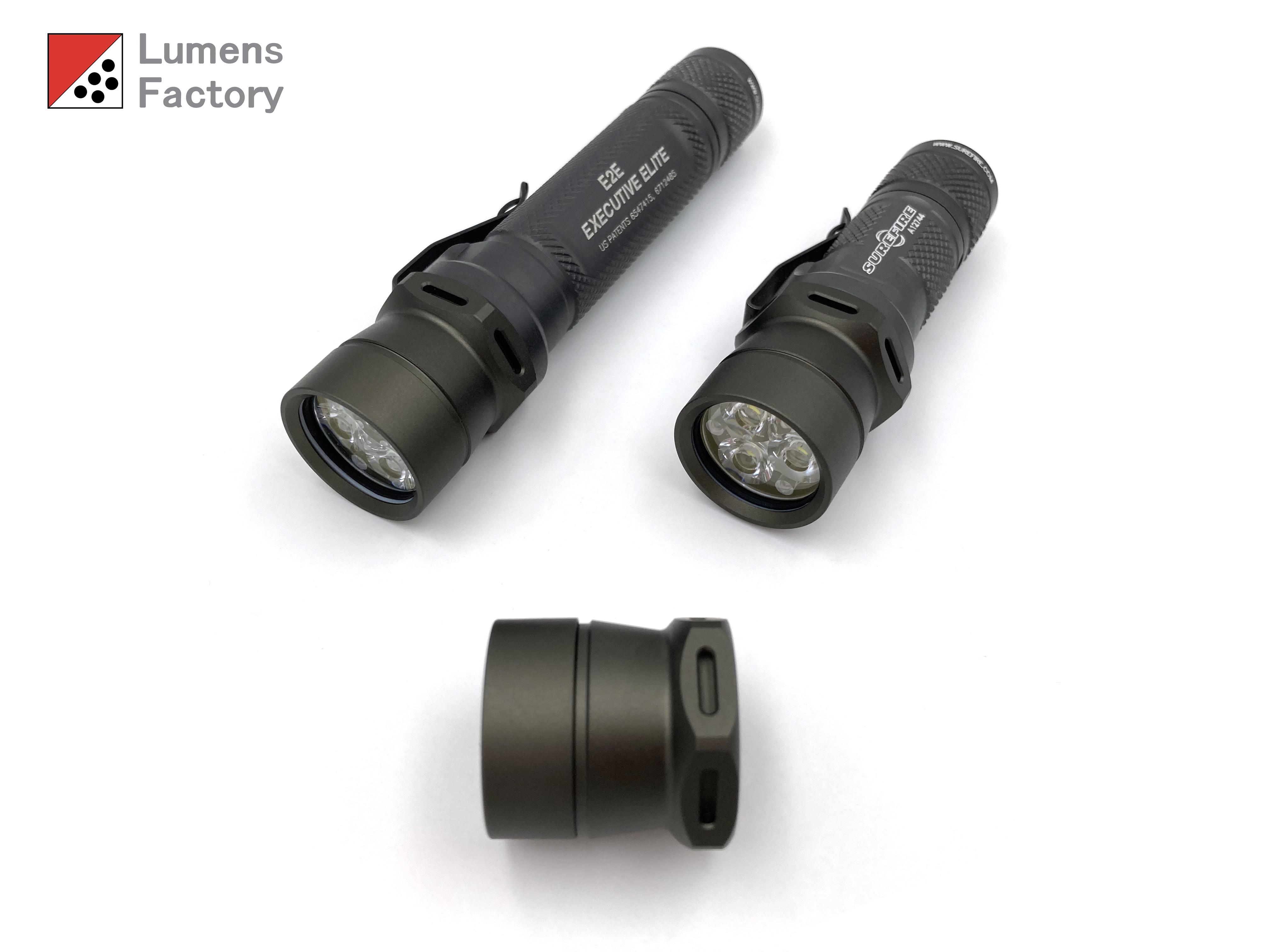

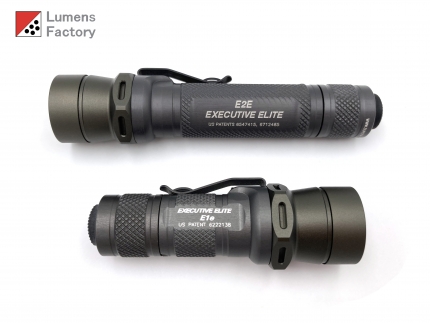

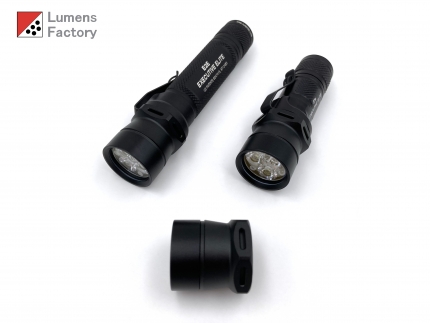

Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
