D26-LED, Pelican M3, M6 LED Module (Gen 9), (3.6-13V, 3 Mode (5%-30%-100%))
Product Option
-- Select Option--
Cool White
Neutral White: 80-CRI
Warm White: 90+CRI
PRICE :
US$38.50
We will be going out of town from May 6th to May 20th, 2024.
Shopping Cart at the Online Shop will cease to function until then.
Sorry for any inconvenience caused.
Thank you for your support.

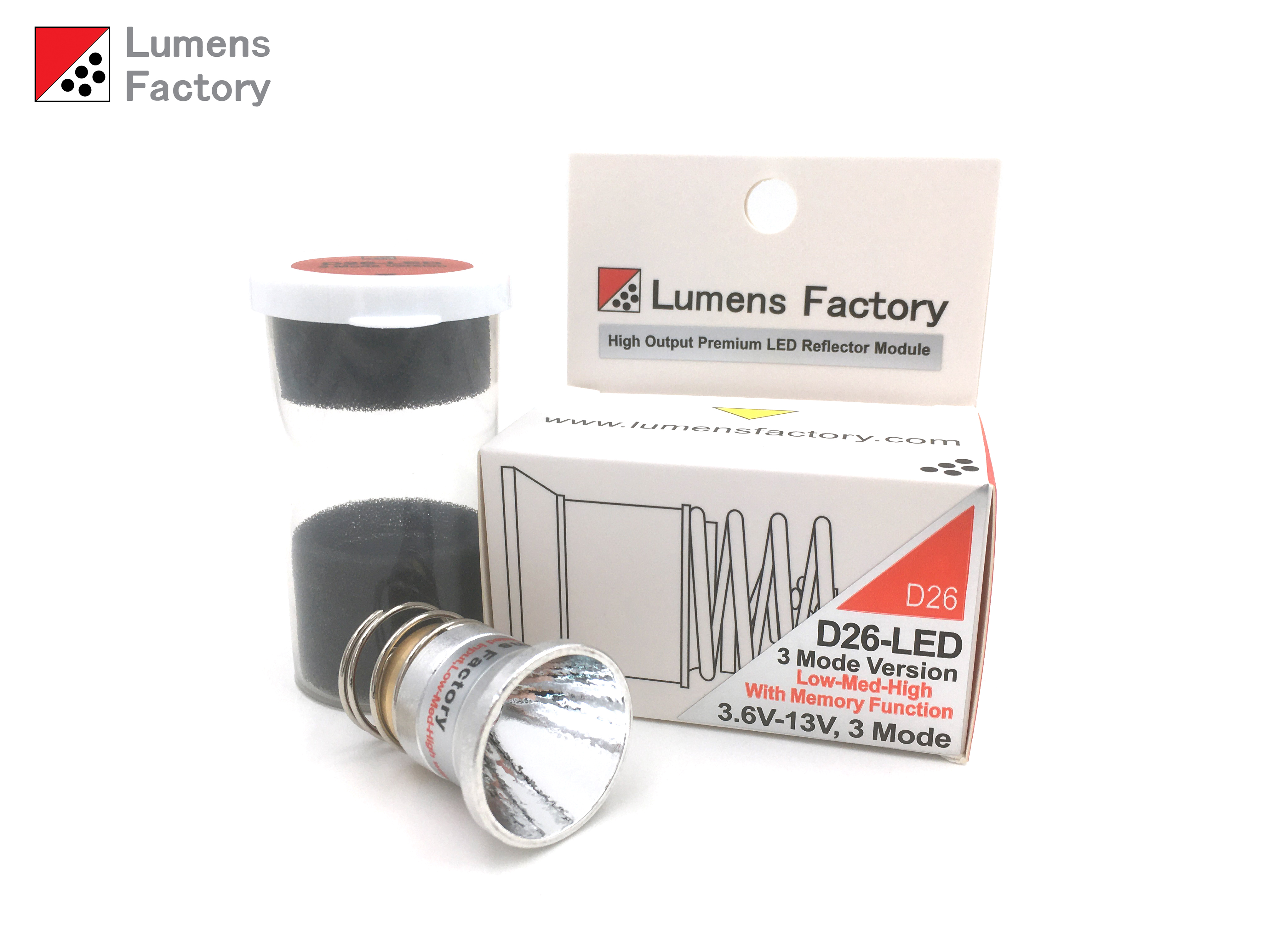

D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver
Generation 7.5: (Neutral White) Nichia 319A LED, 2000mA Driver
Generation 9: (Warm White) Nichia 519A R9080 LED, 2000mA Driver
-High Output Nichia 519A or 319A LED
(Max Output from 850 to 1100 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (3000K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel or Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

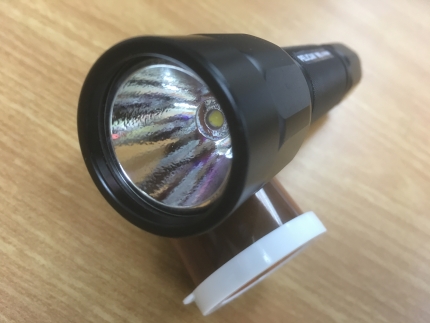

-Compatible with Pelican M6/M3 Incandescent Flashlights Only
***This model is specially made for use on the Pelican M6/M3 lights. Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver
-High Output Nichia 519A Cool White LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K Colour Temperature)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot
-Compatible with Pelican M6/M3 Incandescent Flashlights Only
***This model is specially made for use on the Pelican M6/M3 lights. Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
Generation 7.5: (Neutral White) Nichia 319A LED, 2000mA Driver
-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot
-Compatible with Pelican M6/M3 Incandescent Flashlights Only
***This model is specially made for use on the Pelican M6/M3 lights. Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver
-High Output Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot
-Compatible with Pelican M6/M3 Incandescent Flashlights Only
***This model is specially made for use on the Pelican M6/M3 lights. Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
