D26-LED LED Module (Gen 9), 3.6V-13V (3 Mode (5%-30%-100%))

US$38.50
We will be closing the Online Shop for the Lunar New Year Holidays and will be back on February 23rd, 2026.
Shopping Cart will cease to function until then.

Sorry for any inconvenience caused.
Thank you for your support and wish you all a fruitful and prosperous Year of the Horse.

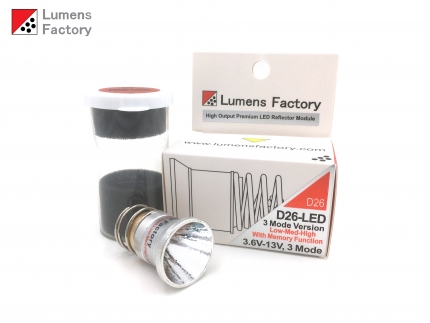

D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver
Generation 9: (Neutral White) Updated to Nichia 519A R9080 LED, 2000mA Driver
Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A LED
(Max Output from 850 to 1100 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (3000K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel or Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***

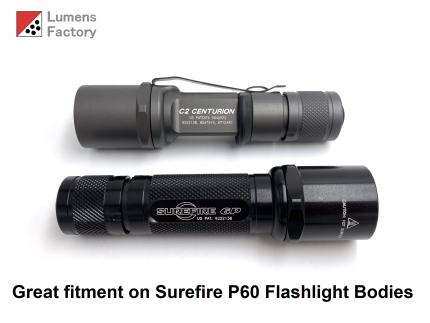

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A Cool White LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K Colour Temperature)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Neutral White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A Neutral White R9080 LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-R9080 90+CRI Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A Cool White LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K Colour Temperature)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Neutral White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A Neutral White R9080 LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-R9080 90+CRI Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime on 100%:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
