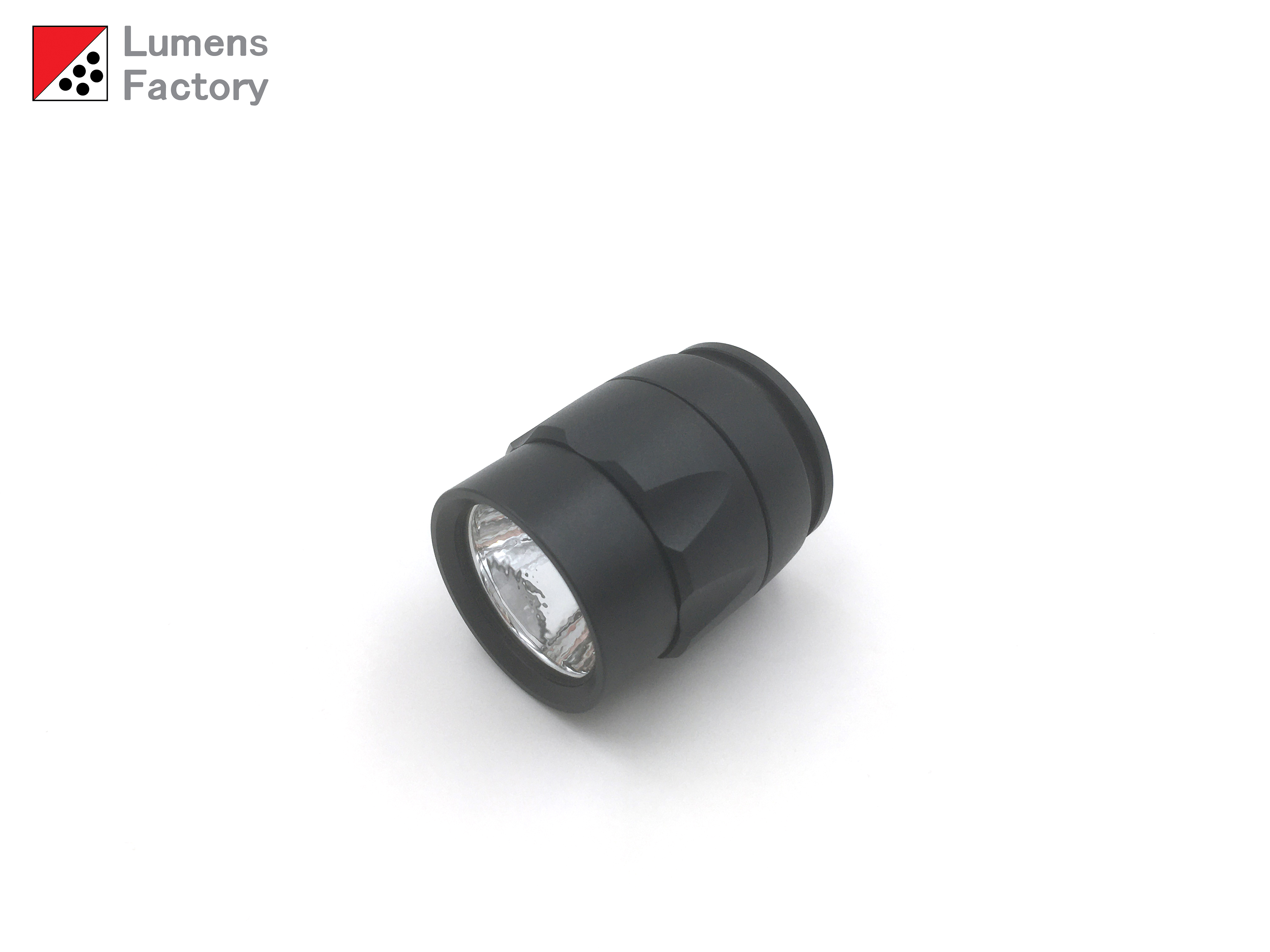

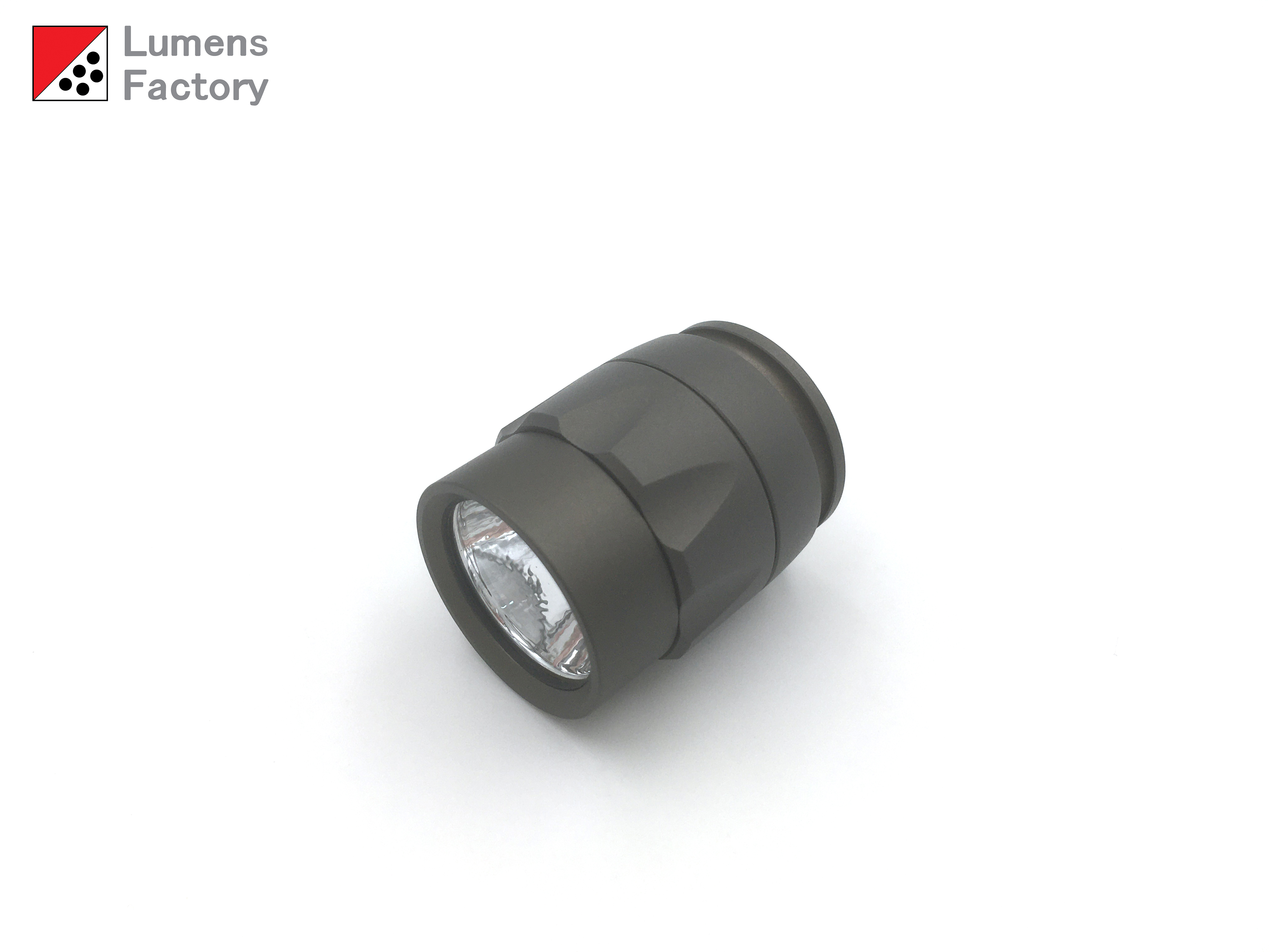

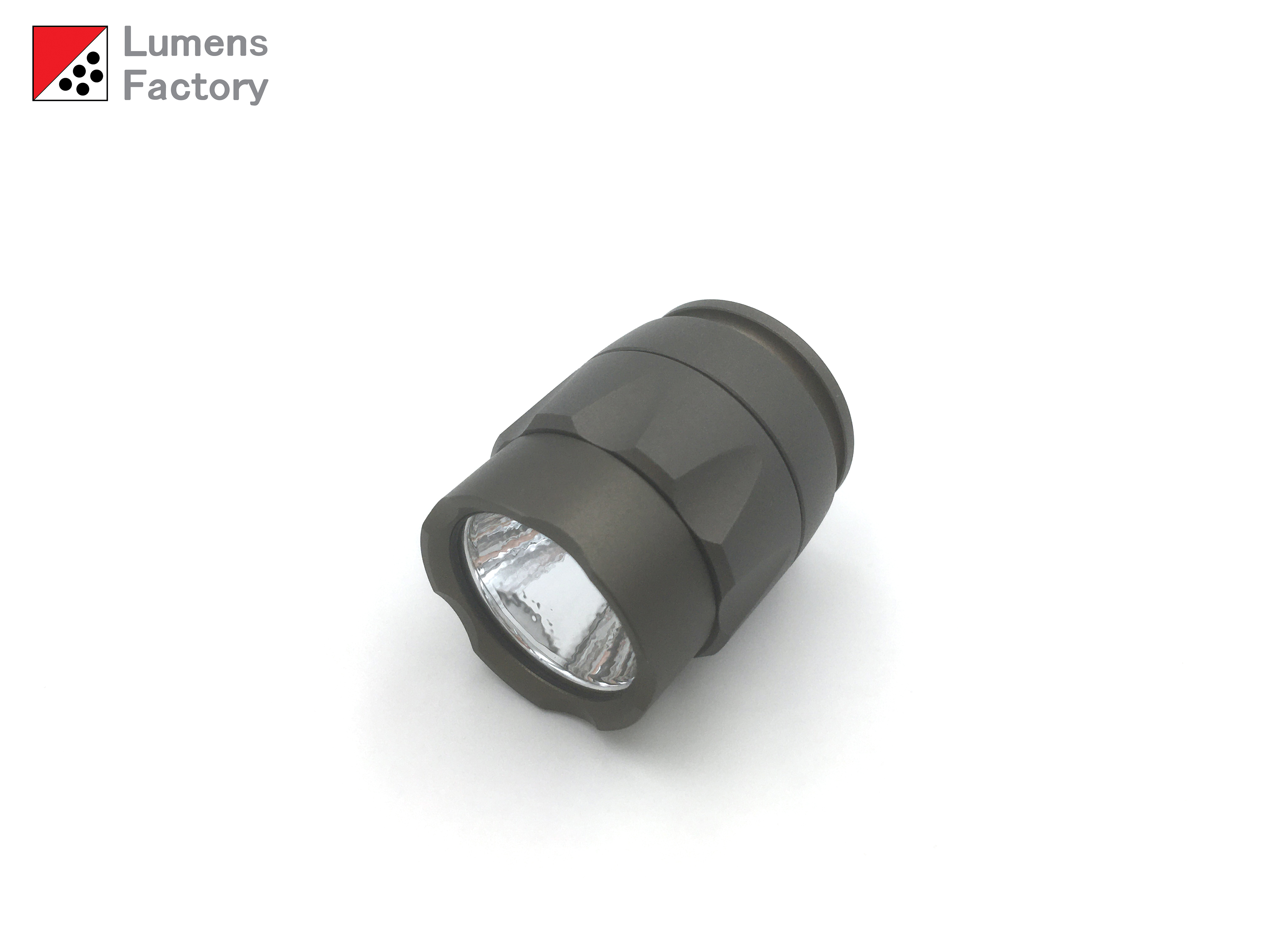

E Series KL4 Style Head Unit (Gen 7), 1 Mode (2.7V-4.5V), HA3 Natural/HA3 Black

US$68.50
ADD TO CART
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver
Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver
Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A or Nichia 319A (Max Output 800-850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Neutral White 80-CRI or Warm White 90+CRI LEDs Available
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black or Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

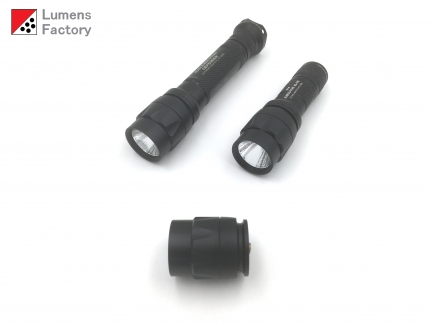

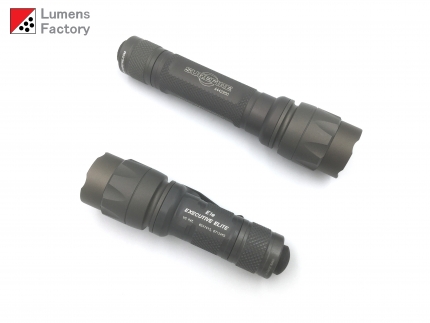

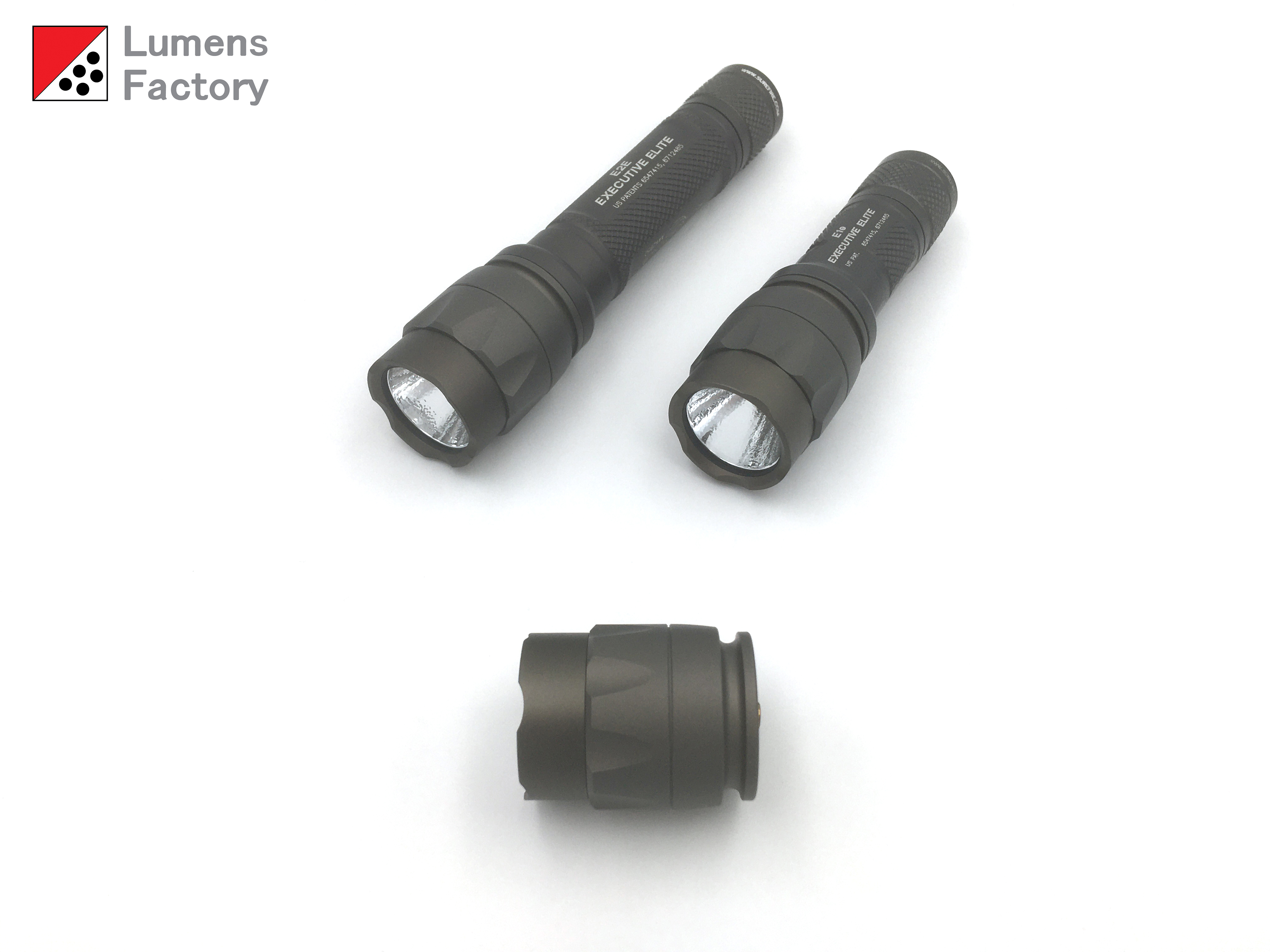

Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light

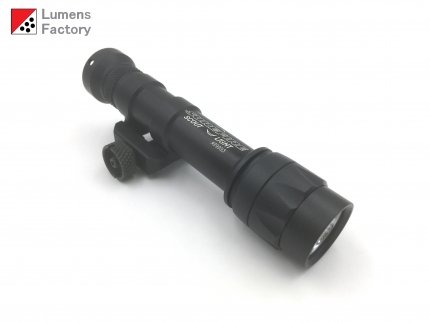

M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit(Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Black Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour

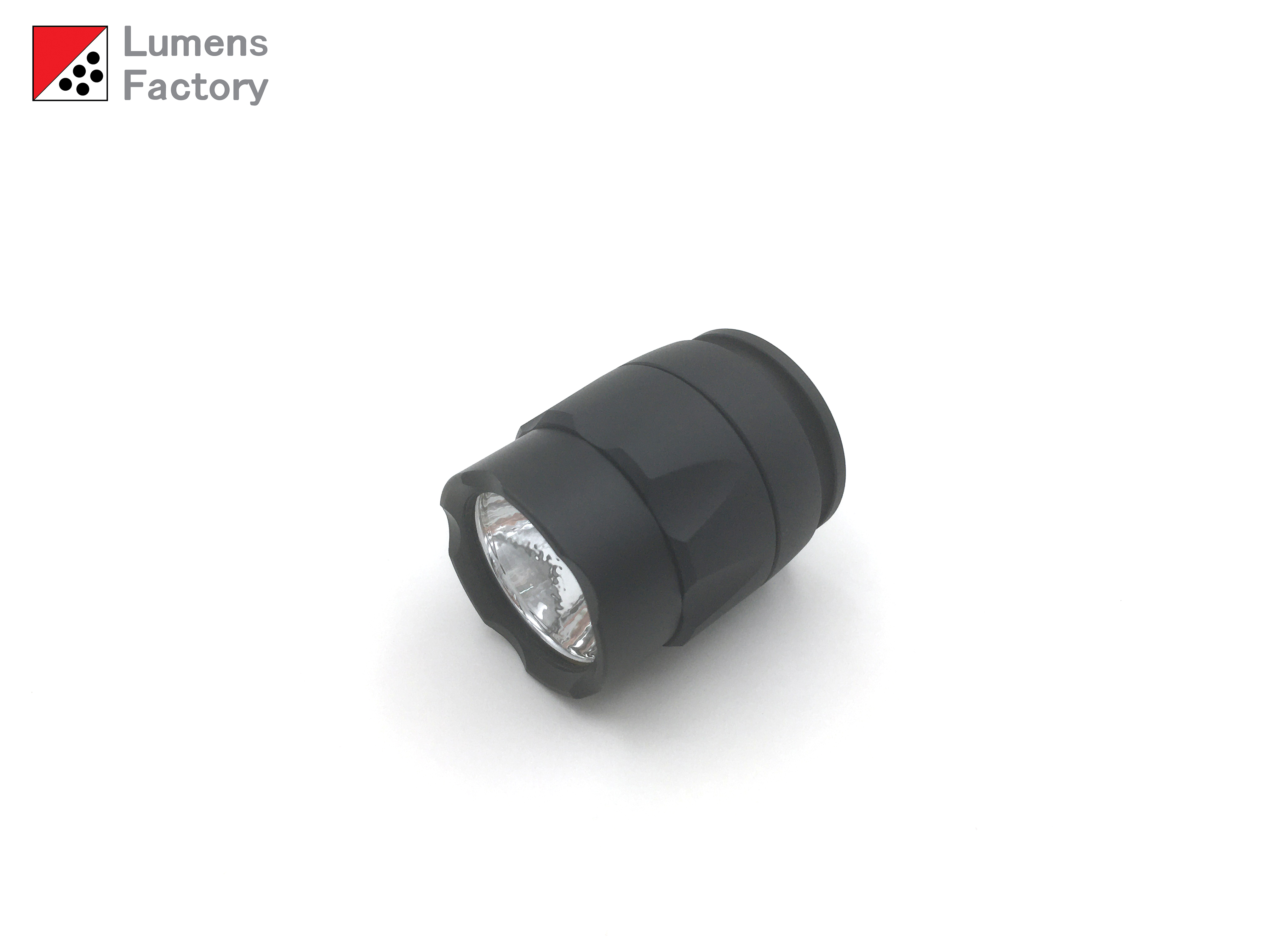

E Series KL4 Style LED Head Unit(Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Black Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
E Series KL4 Style LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x AW17670 (1600mAh): ~1 hour
