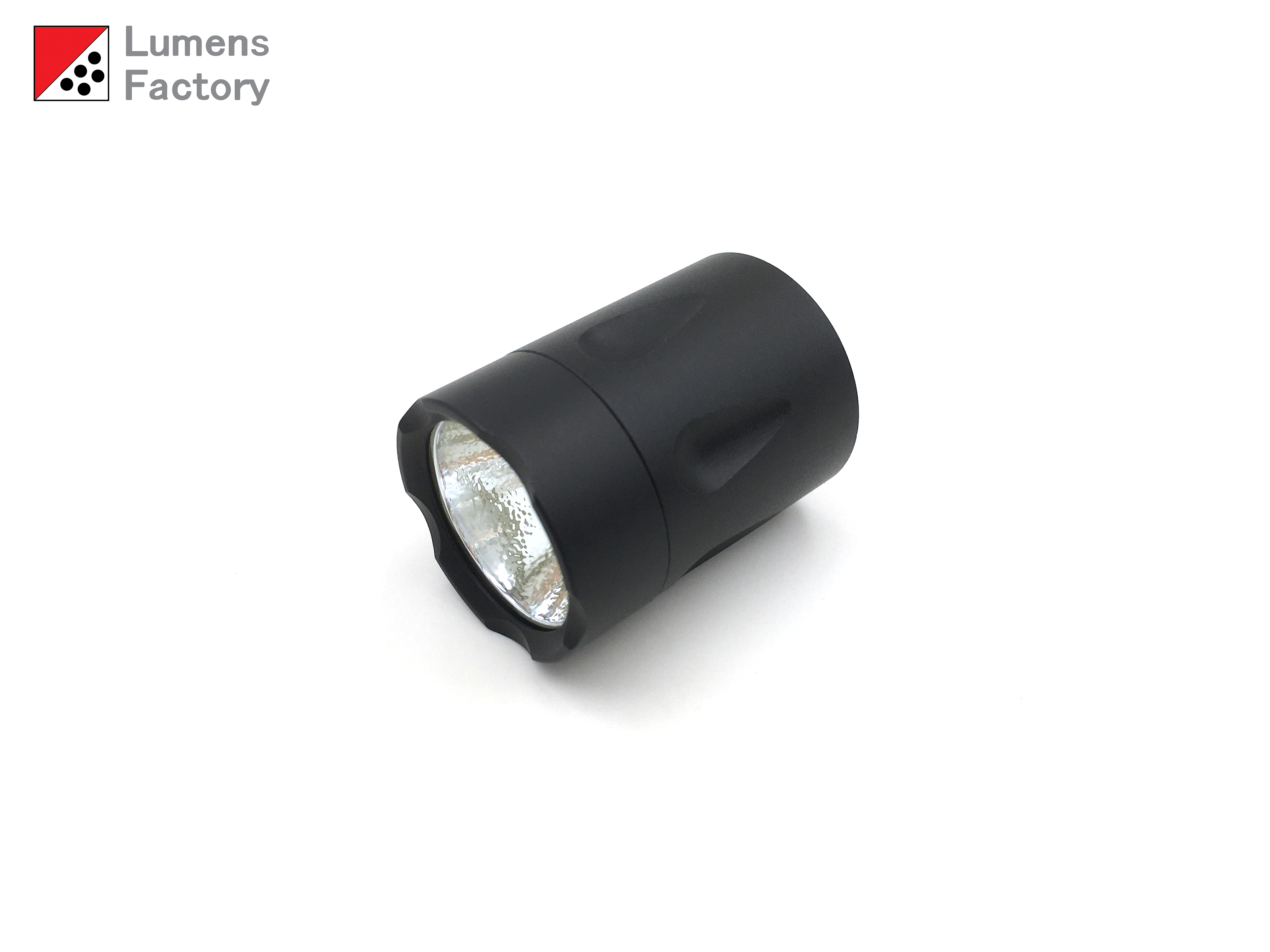

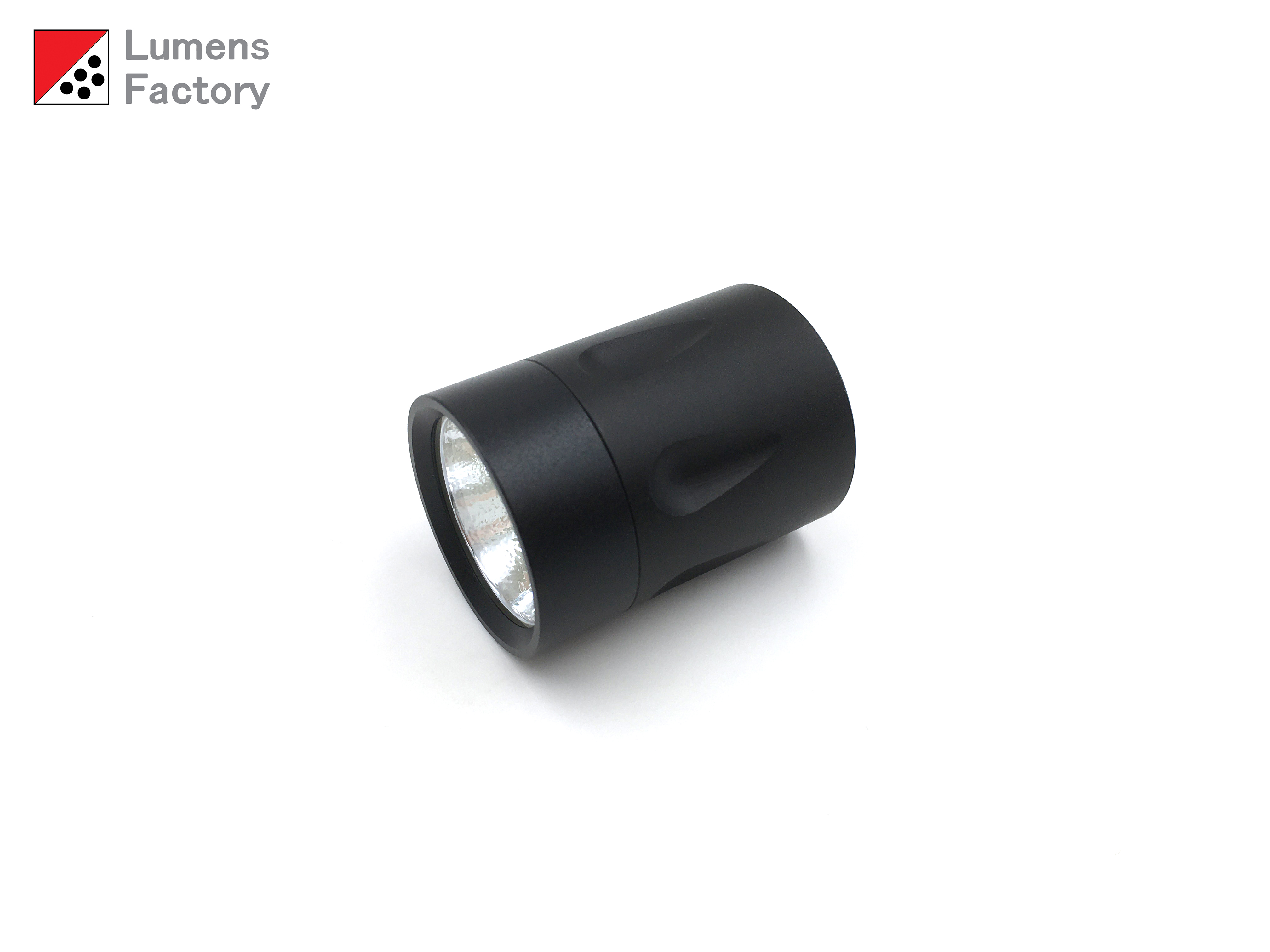

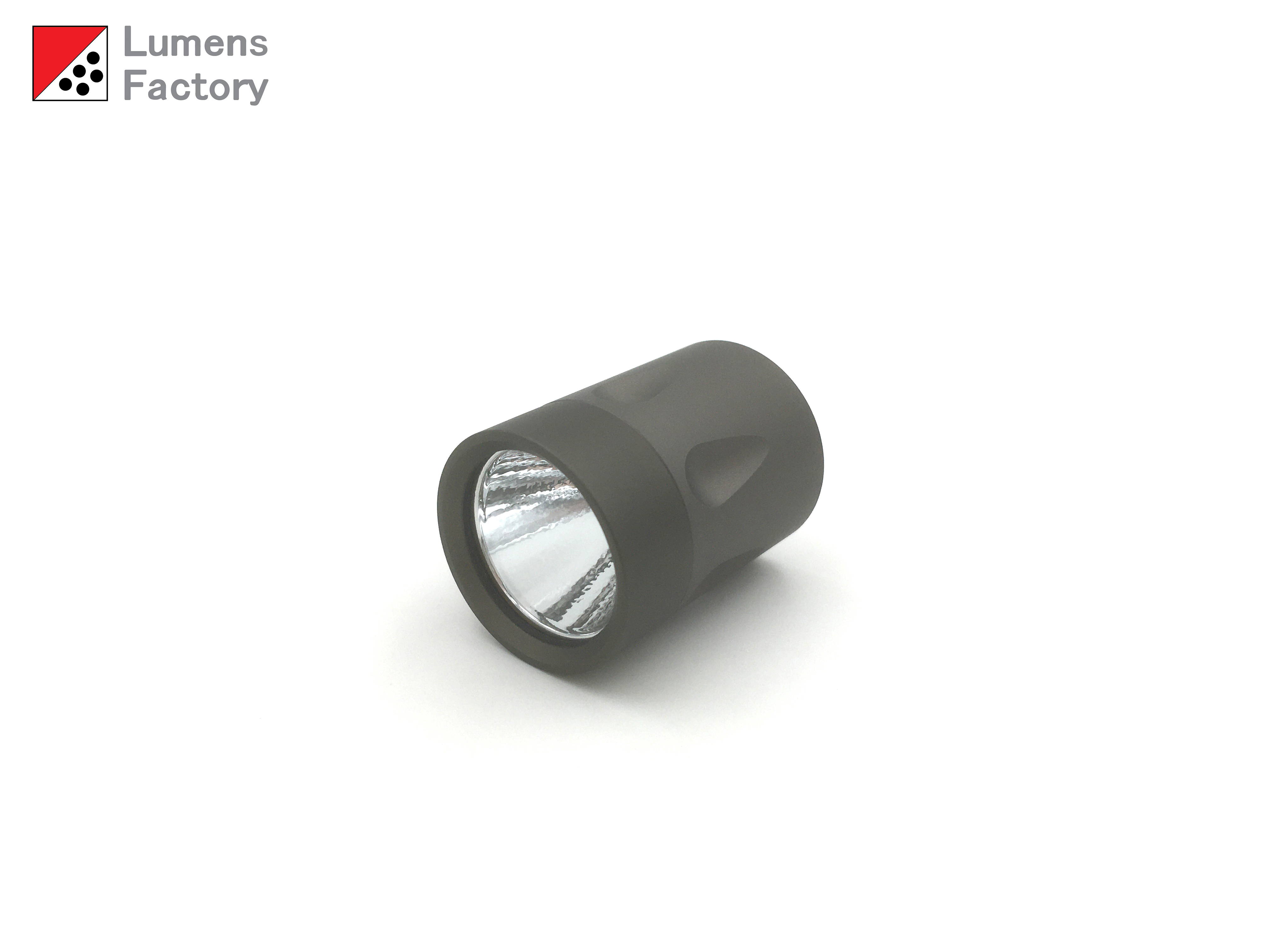

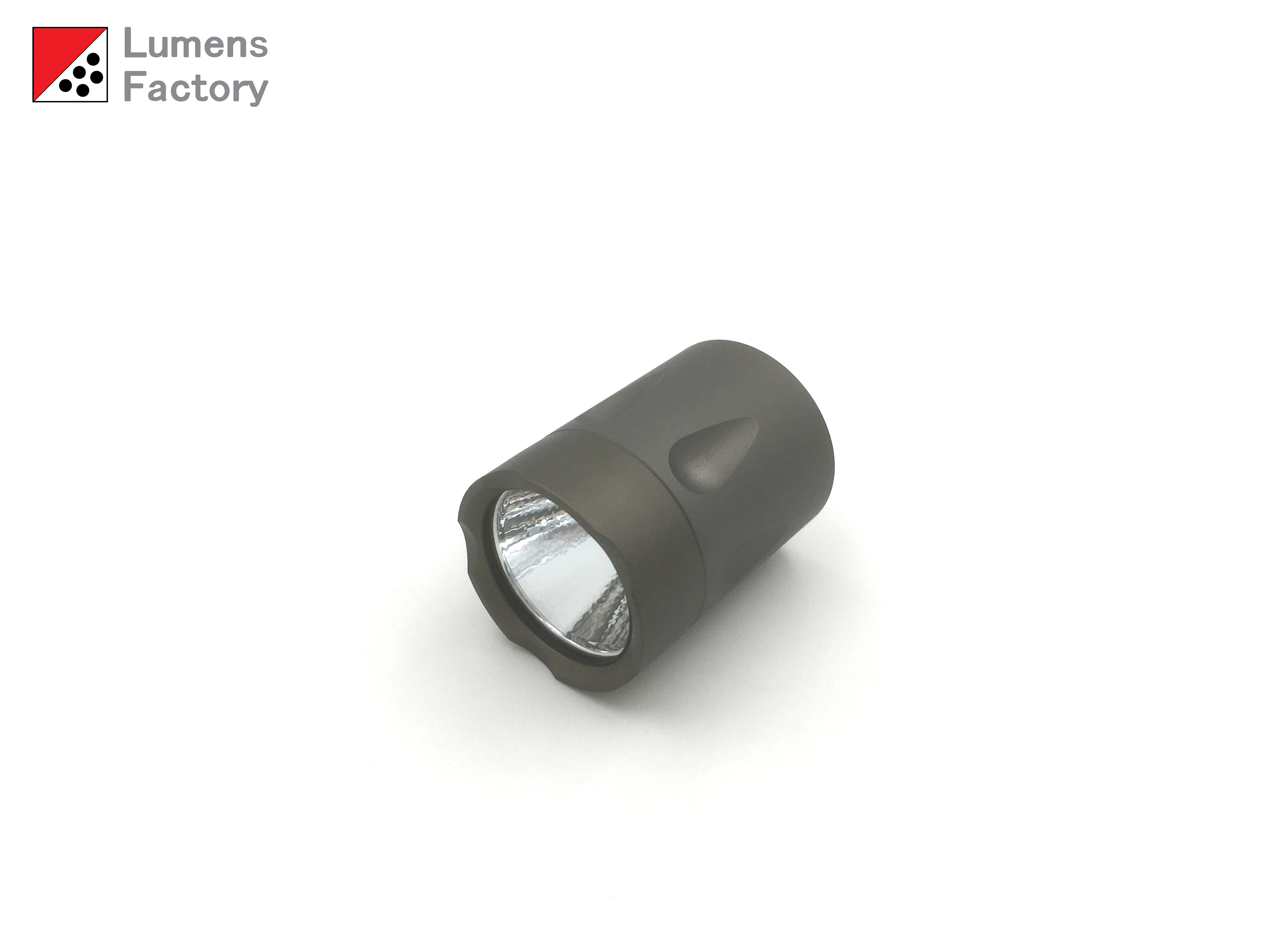

E Series Classic Teardrop Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, 2000mA Driver
Generation 5: (Neutral White) Nichia 319A LED, 2000mA Driver
Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A or Nichia 319A (Max Output 850-1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White, Neutral White 80-CRI or Warm White 90+CRI LEDs Available
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black or Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

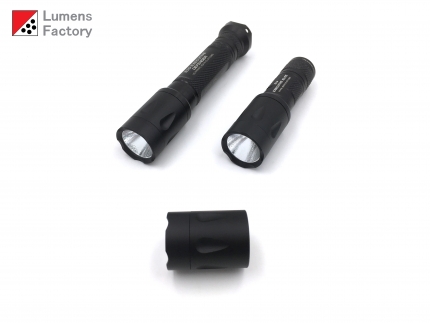

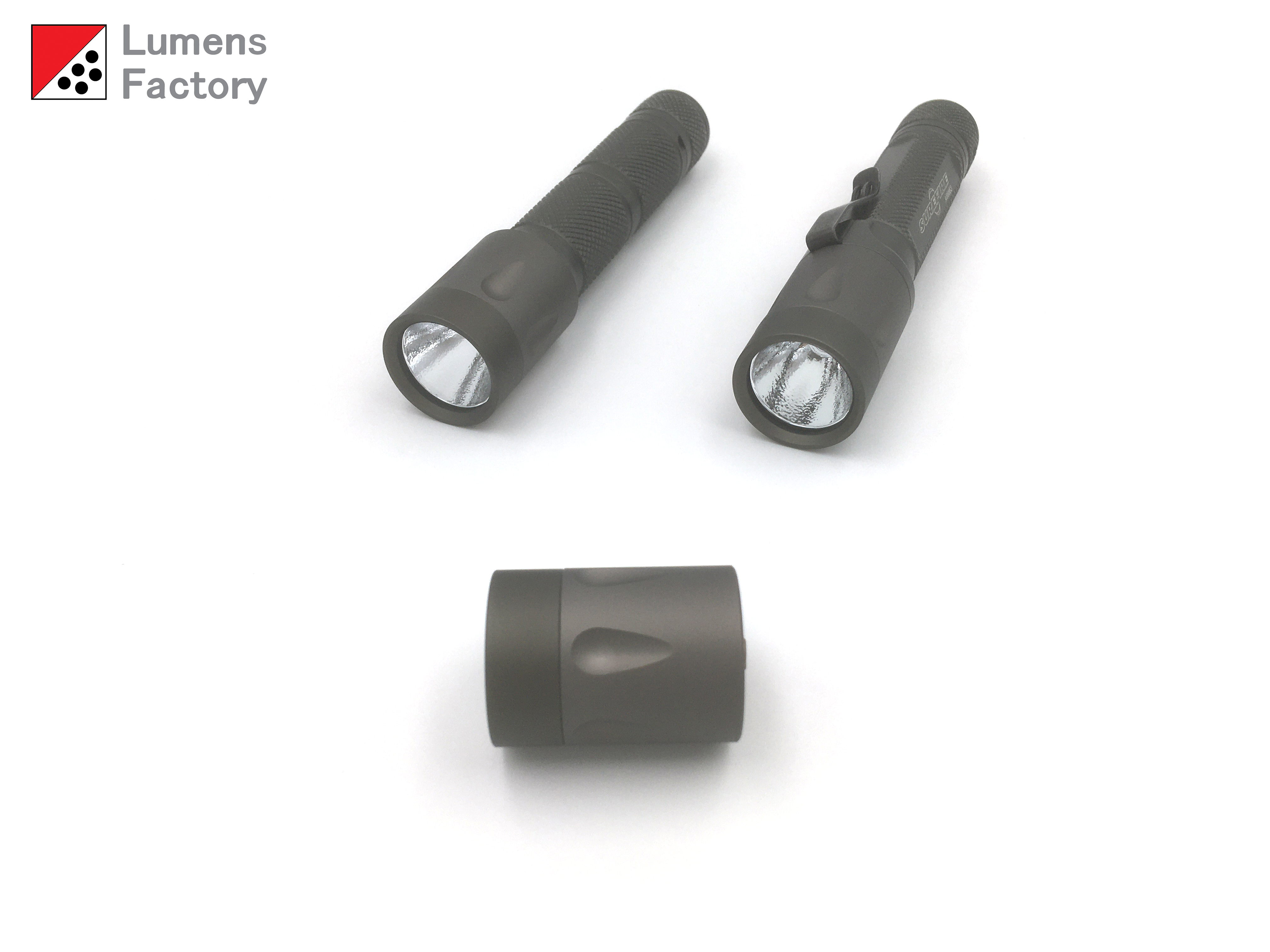

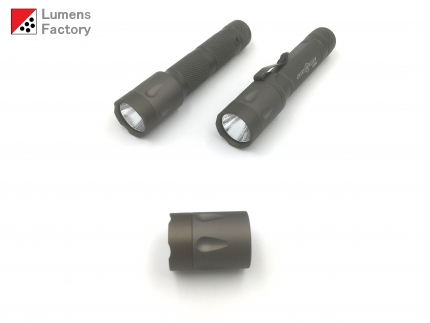

Compatible with:

Surefire
E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

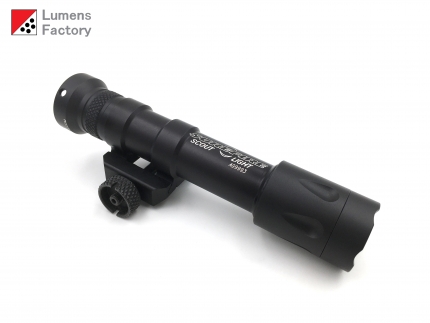

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka
M600 Series


Runtime:

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
