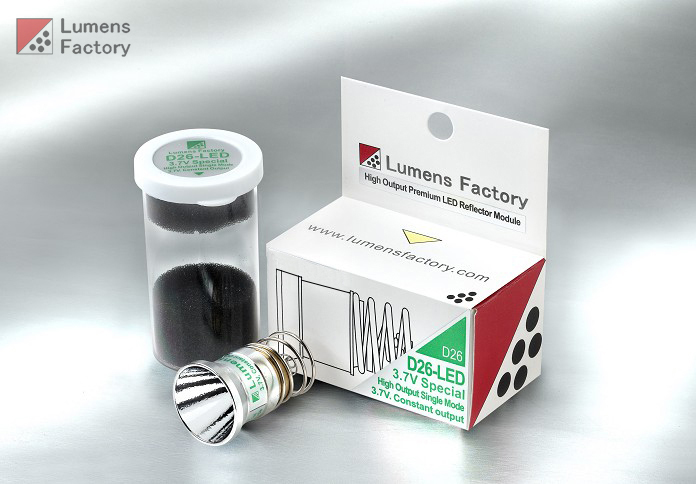

D26-LED LED Module (Gen 9), 2.7V-4.5V (Single Battery Setups, 1 Mode)

US$38.50
ADD TO CART
D26-LED High Output Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver
Generation 7.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver
Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A or Nichia 319A LED
(Max Output from 800 to 850 Lumens depending on model)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (3000K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel or Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***

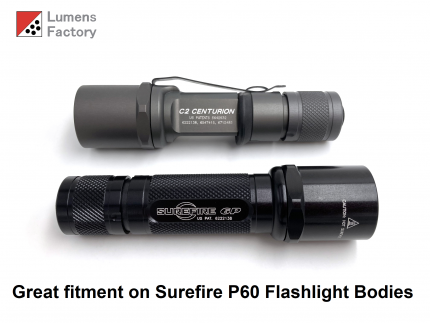

Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)

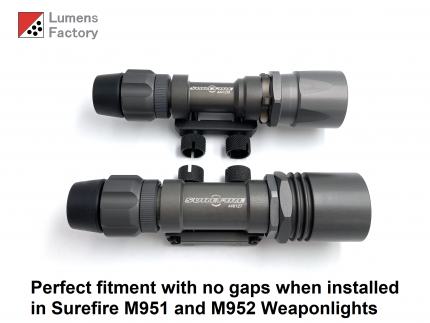

M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

2 x AA: ~1 hour
1 x CR123a: ~1 hour
1 x 17670 (1600mAh): ~1.5 hour
1 x 18650 (2900mAh): ~2.5 hours
D26-LED High Output Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

1 x CR123a: ~1 hour
1 x AW17670 (1600mAh): ~1.5 hour
1 x AW18650 (2900mAh): ~2.5 hours
D26-LED High Output Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 7.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

1 x CR123a: ~1 hour
1 x AW17670 (1600mAh): ~1.5 hour
1 x AW18650 (2900mAh): ~2.5 hours
D26-LED High Output Single Mode LED Reflector Module
Warm White: 90+CRI
(2.7V-4.5V Regulated Input)

Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

1 x CR123a: ~1 hour
1 x AW17670 (1600mAh): ~1.5 hour
1 x AW18650 (2900mAh): ~2.5 hours
D26-LED High Output Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

1 x CR123a: ~1 hour
1 x AW17670 (1600mAh): ~1.5 hour
1 x AW18650 (2900mAh): ~2.5 hours
D26-LED High Output Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 7.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

1 x CR123a: ~1 hour
1 x AW17670 (1600mAh): ~1.5 hour
1 x AW18650 (2900mAh): ~2.5 hours
D26-LED High Output Single Mode LED Reflector Module
Warm White: 90+CRI
(2.7V-4.5V Regulated Input)

Generation 9: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

1 x CR123a: ~1 hour
1 x AW17670 (1600mAh): ~1.5 hour
1 x AW18650 (2900mAh): ~2.5 hours
