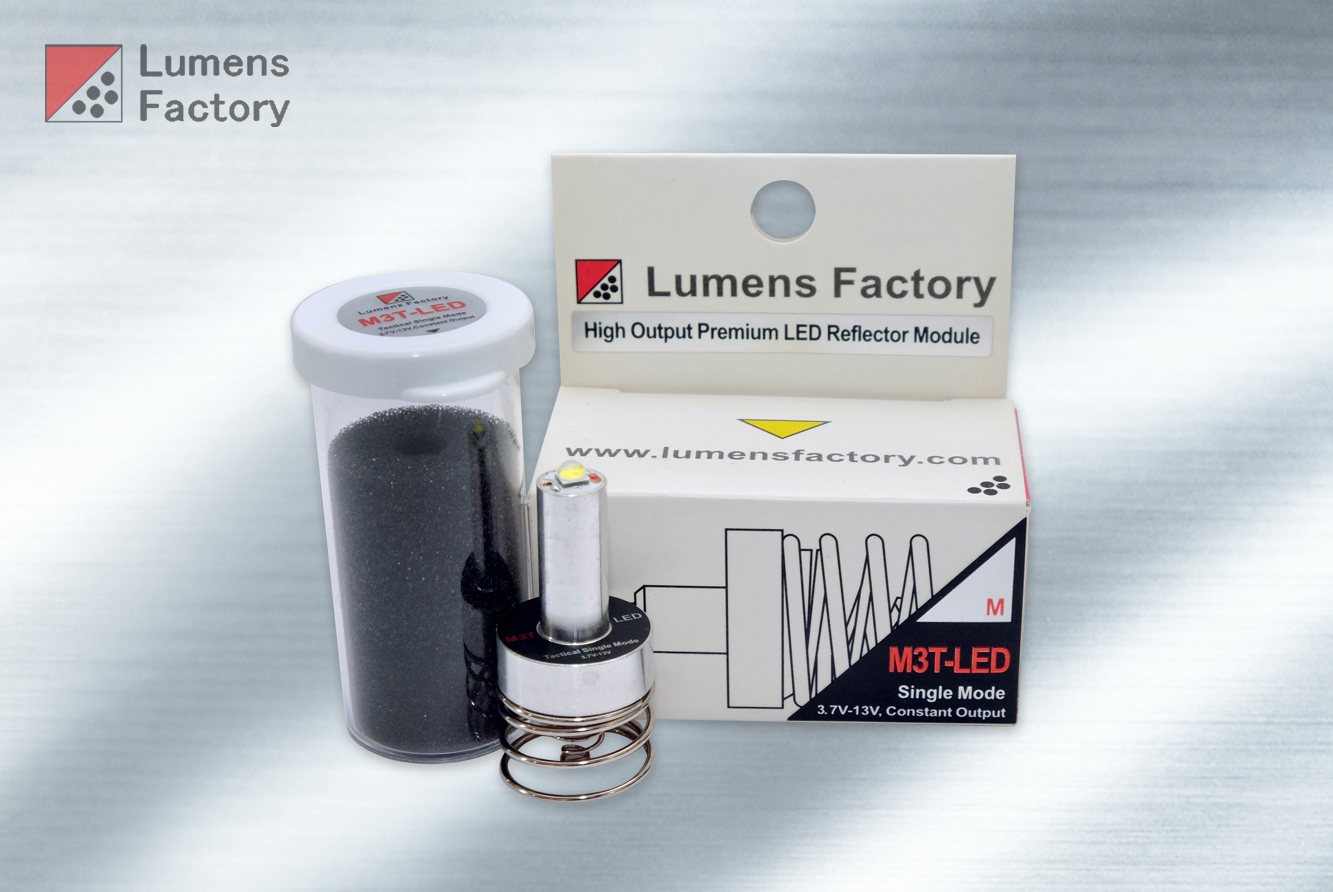

M3T-LED Single Mode LED Assembly (Gen 6), Nichia 519A

US$58.00
M3T-LED High Output Single Mode LED Tower Module
(3.6V-13V Regulated Input)

Generation 6: (Cool White) Updated to Nichia 519A LED
Generation 4: (Neutral White) Nichia 319A LED
Generation 2: (Warm White) Cree XP-L LED

-High Output Nichia 519A, Nichia 319A LED or Cree XP-L LED
(Max Output from 800 to 1100 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
M3T, M4, M6, lights with KT4 Turbohead.
M971 Weaponlight
M972 Weaponlight
M981 Weaponlight
M982 Weaponlight
Lights that use MN15, MN16, MN20, MN21, MN60, MN61 Lamp Assembly

Lumens Factory
Seraph SP-6, SP-9 with M Adaptor Installed with
Seraph M Series Turbo Head for Tower Type Drop-in Modules


Runtime:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
4 x CR123a Primaries: ~5 hours
6 x CR123a Primaries: ~6 hours
6 x RCR123 (750mAh): ~6 hours
M3T-LED High Output Single Mode LED Tower Module
(3.6V-13V Regulated Input)

Generation 6: (Cool White) Updated to Nichia 519A LED

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
M3T, M4, M6, lights with KT4 Turbohead.
M971 Weaponlight
M972 Weaponlight
M981 Weaponlight
M982 Weaponlight
Lights that use MN15, MN16, MN20, MN21 Lamp Assembly

Lumens Factory
Seraph SP-6, SP-9 with M Adaptor Installed with
Seraph M Series Turbo Head for Tower Type Drop-in Modules


Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
4 x CR123a Primaries: ~5 hours
6 x CR123a Primaries: ~6 hours
6 x AW RCR123 (750mAh): ~6 hours
M3T-LED High Output Single Mode LED Tower Module
Neutral White: 80-CRI
(3.6V-13V Regulated Input)

Generation 4: (Neutral White) Nichia 319A LED

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Neutral White, Neutral Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
M3T, M4, M6, lights with KT4 Turbohead.
M971 Weaponlight
M972 Weaponlight
M981 Weaponlight
M982 Weaponlight
Lights that use MN15, MN16, MN20, MN21 Lamp Assembly

Lumens Factory
Seraph SP-6, SP-9 with M Adaptor Installed with
Seraph M Series Turbo Head for Tower Type Drop-in Modules


Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
4 x CR123a Primaries: ~5 hours
6 x CR123a Primaries: ~6 hours
6 x AW RCR123 (750mAh): ~6 hours
M3T-LED High Output Single Mode LED Tower Module
Warm White: 90-CRI
(3.6V-13V Regulated Input)

Generation 2: (Warm White) Cree XP-L LED

-High Output Cree XP-L, Warm White 90-CRI LED (Max Output 800 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Warm White, Warm Colour Temperature (2600K-3200K)
-90-CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
M3T, M4, M6, lights with KT4 Turbohead.
M971 Weaponlight
M972 Weaponlight
M981 Weaponlight
M982 Weaponlight
Lights that use MN15, MN16, MN20, MN21 Lamp Assembly

Lumens Factory
Seraph SP-6, SP-9 with M Adaptor Installed with
Seraph M Series Turbo Head for Tower Type Drop-in Modules


Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
4 x CR123a Primaries: ~5 hours
6 x CR123a Primaries: ~6 hours
6 x AW RCR123 (750mAh): ~6 hours
