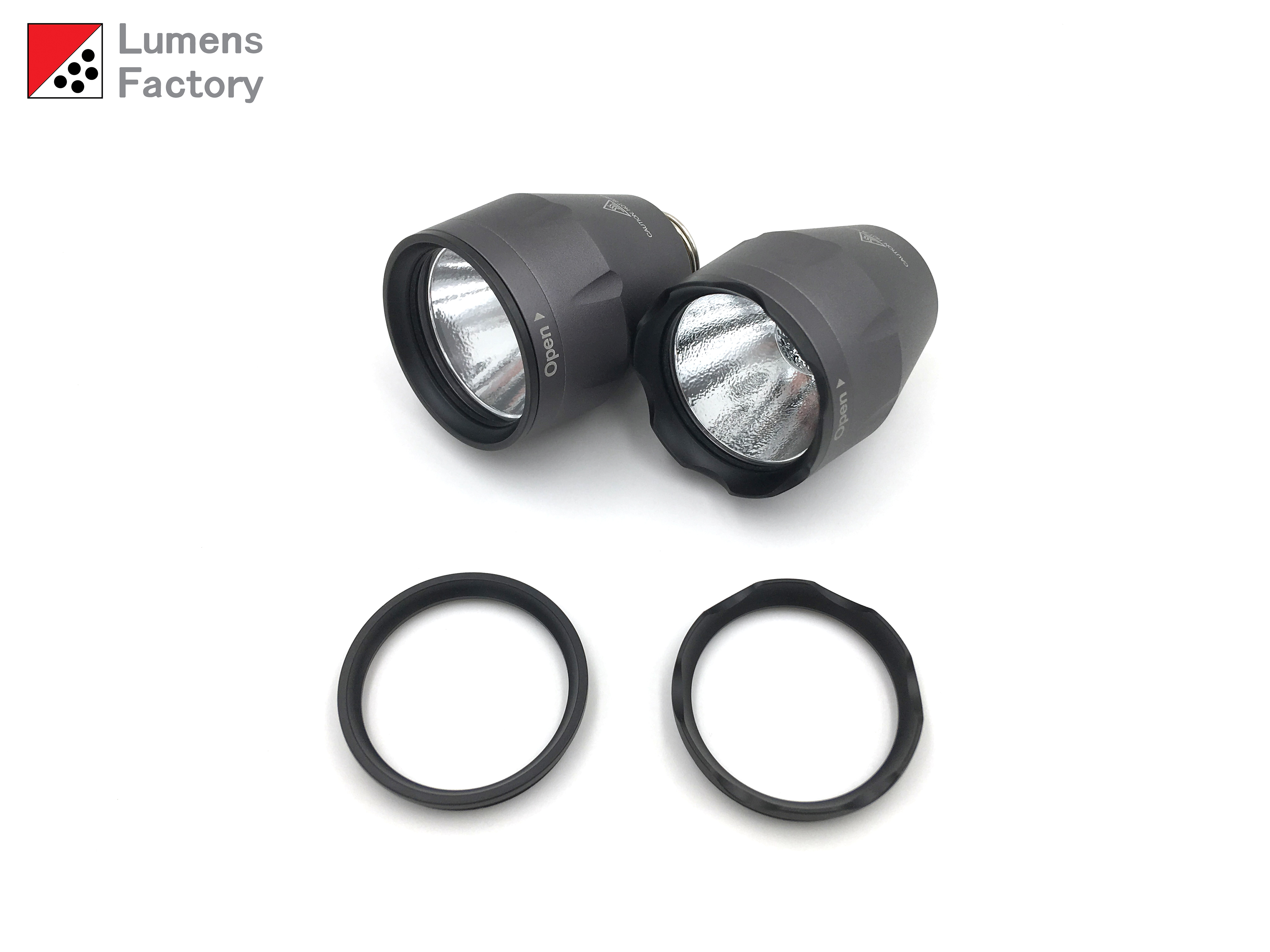

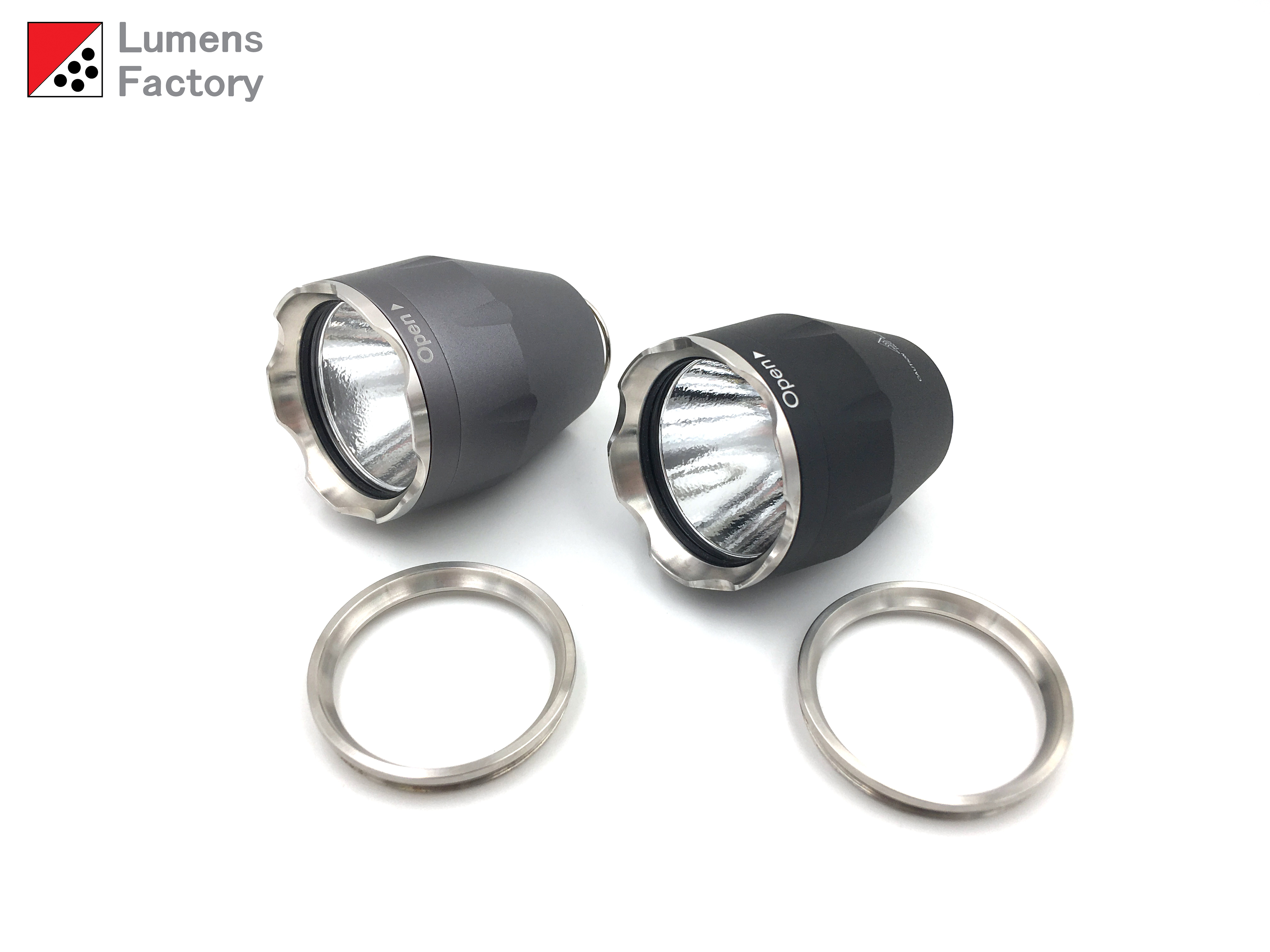

D36 LED Head Unit

D36 36mm Mini-Turbo Head for Seraph SP-6 and SP-9
Compatible with Surefire P/C/G/Z Series Lights
Include 2 Stainless Steel Bezel Rings (Scalloped and Flat)
This is the version in Charcoal Grey Finish

-High Output Cree XHP50.2, K4 Bin LED (Max Output 2000 Lumens)
-7.2V to 18V Regulated Input for Maximum Flexibility
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Driver Internals Thermally Potted
-Standard White Version
-Tactical Single Mode
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
6P, 9P
C2, C3
D2, D3
G2, G3
Z2, Z3

Lumens Factory
Seraph SP-6, SP-9


Runtime:

3 x CR123a Primaries: ~1 hour
3 x 16340 (750mAh): ~1 hour
2 x 17500 (1100mAh): ~40 mins
4 x CR123a Primaries: ~ 1.2 hour
4 x 16340 (750mAh): ~ 1.2 hour
2 x 17670 (1600mAh): ~1.5 hour
2 x 18650 (2900mAh): ~2 hours

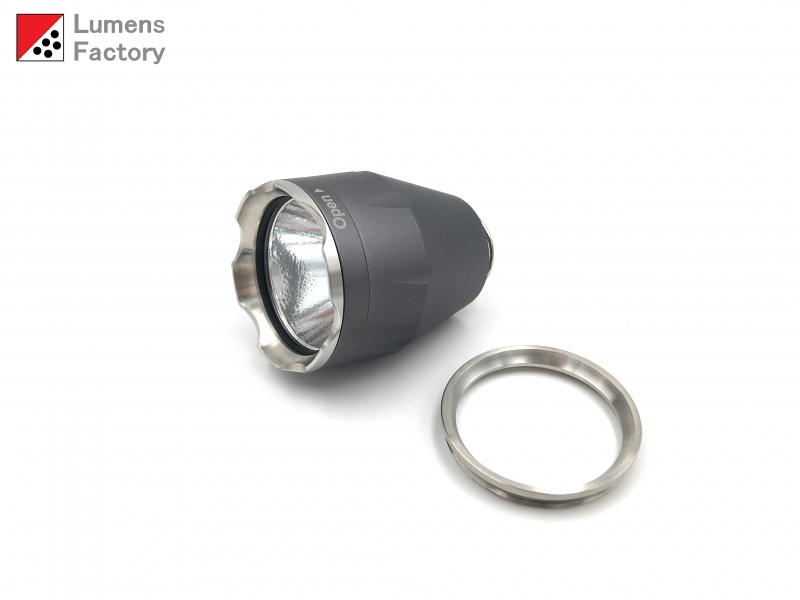

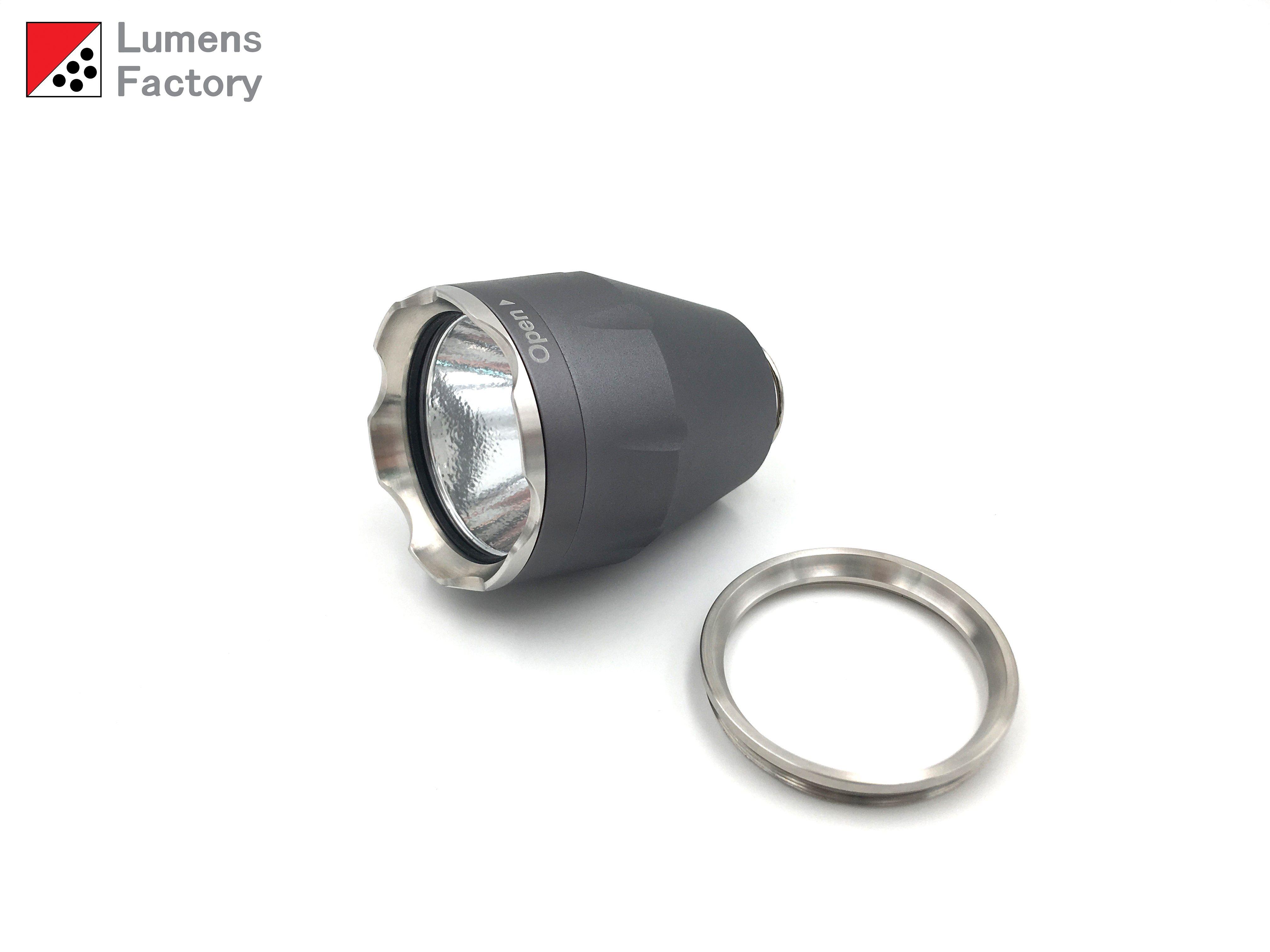

Upgrade version with the Mil-Spec QPQ Black Bezel on the Charcoal Grey Head Unit.

-Will change the Standard Stainless Steel Bezel on the D36 Head Unit to Mil-Spec QPQ Black Stainless Steel Bezels.
-Include both Crenelated and Flat Mil-Spec QPQ Black Stainless Steel Bezels for the D36 Head Unit.

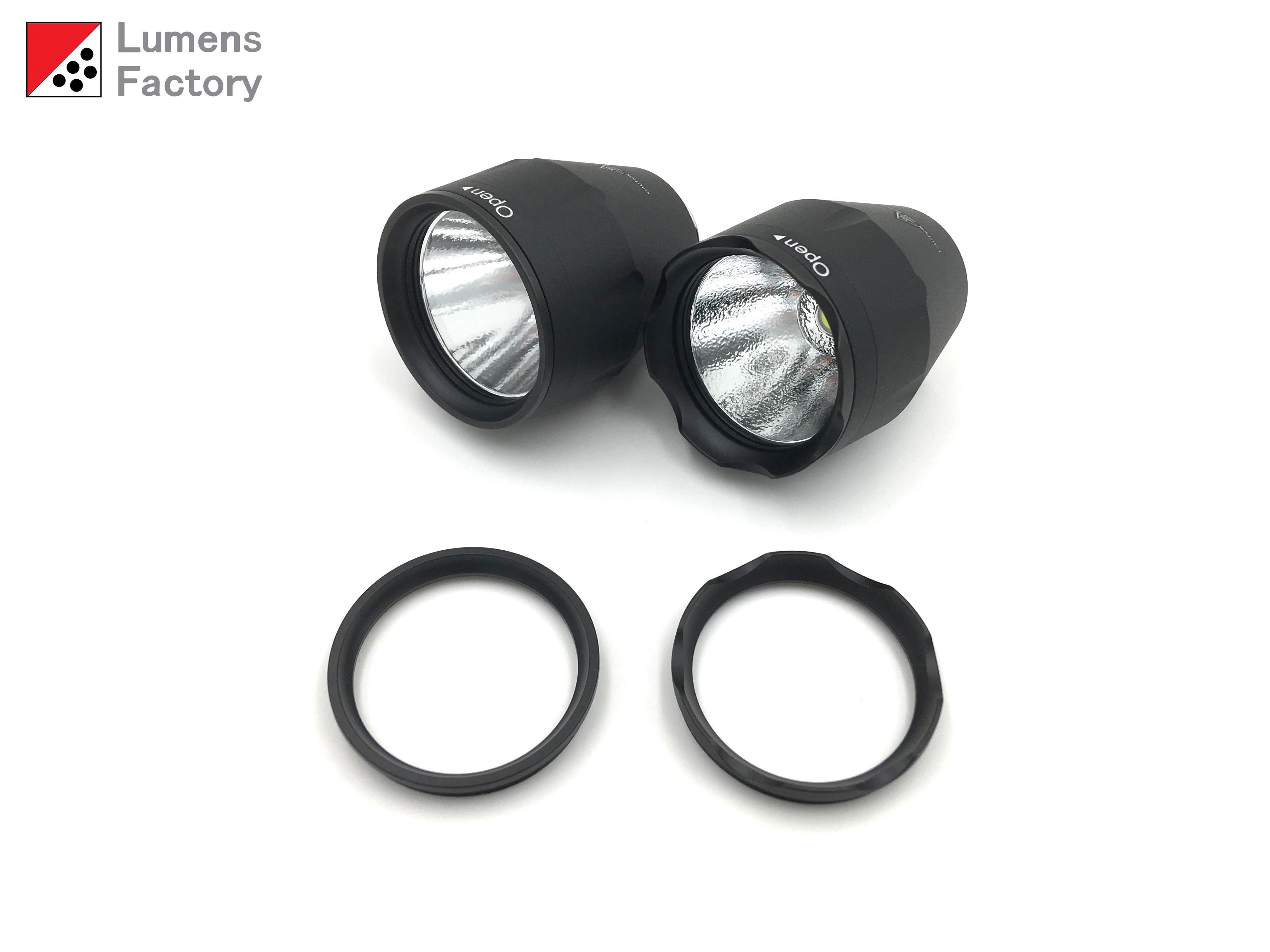

D36 LED Head Unit

D36 36mm Mini-Turbo Head for Seraph SP-6 and SP-9
Compatible with Surefire P/C/G/Z Series Lights
Include 2 Stainless Steel Bezel Rings (Scalloped and Flat)
This is the version in HA3 Flat/Matt Black

-High Output Cree XHP50.2, K4 Bin LED (Max Output 2000 Lumens)
-7.2V to 18V Regulated Input for Maximum Flexibility
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Driver Internals Thermally Potted
-Standard White Version
-Tactical Single Mode
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
6P, 9P
C2, C3
D2, D3
G2, G3
Z2, Z3

Lumens Factory
Seraph SP-6, SP-9


Runtime:

3 x CR123a Primaries: ~1 hour
3 x 16340 (750mAh): ~1 hour
2 x 17500 (1100mAh): ~40 mins
4 x CR123a Primaries: ~ 1.2 hour
4 x 16340 (750mAh): ~ 1.2 hour
2 x 17670 (1600mAh): ~1.5 hour
2 x 18650 (2900mAh): ~2 hours

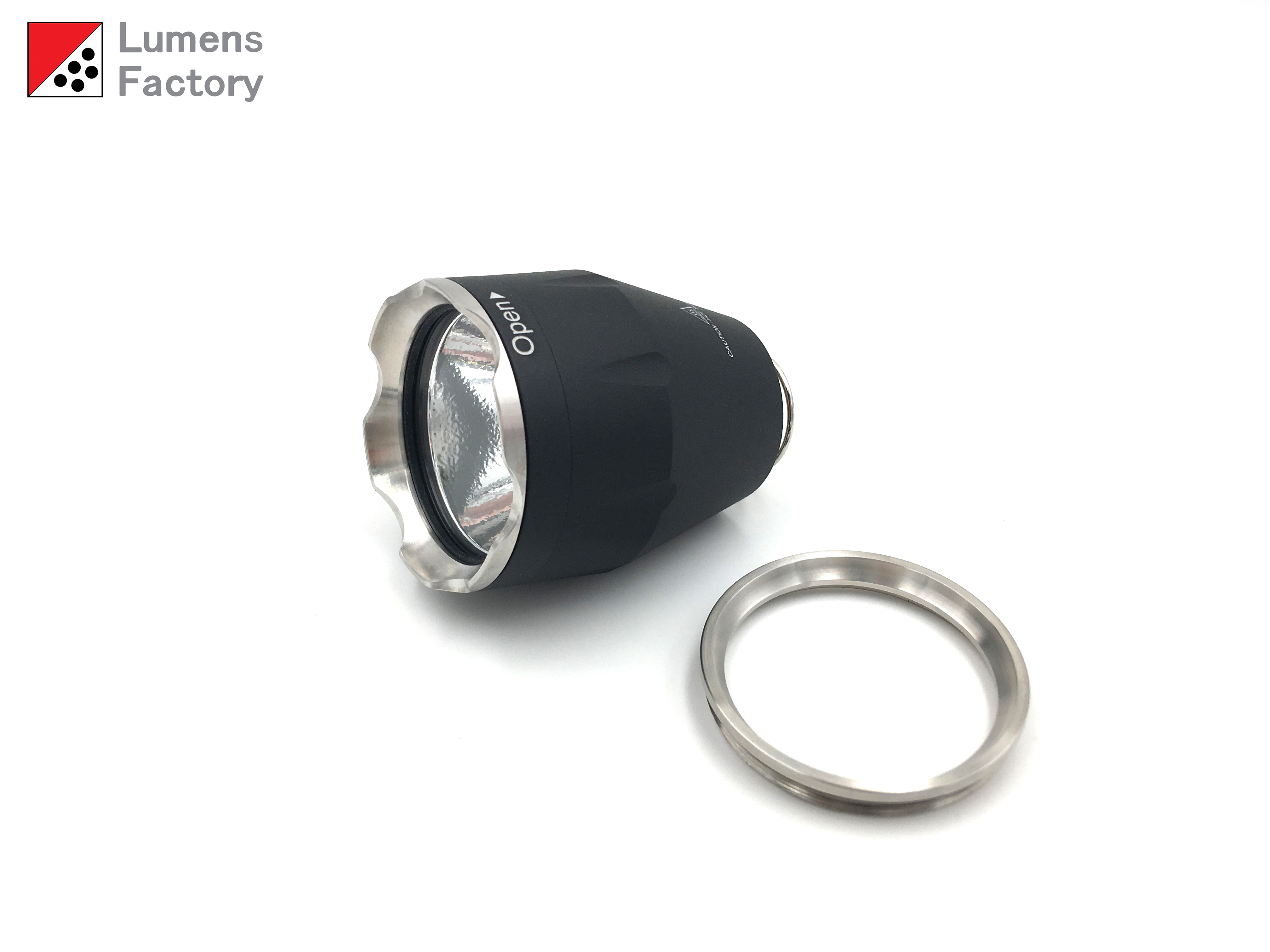

Upgrade version with the Mil-Spec QPQ Black Bezel on the HA3 Flat/Matt Black Head Unit.

-Will change the Standard Stainless Steel Bezel on the D36 Head Unit to Mil-Spec QPQ Black Stainless Steel Bezels.
-Include both Crenelated and Flat Mil-Spec QPQ Black Stainless Steel Bezels for the D36 Head Unit.
